Unmanaged Industrial Switch, 4 10/10 Ethernet ports

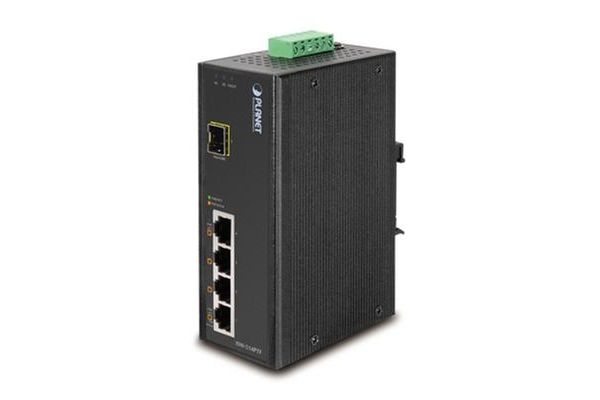

SKILLEYE ISW-514PTF Unmanaged Industrial Switch, 4 10/10 Ethernet ports

MT Code: SKL_ISW-514PTF
Manufacturer Code: ISW-514PTF
Brand: SKILLEYE

Unmanaged Industrial Switch, 4 10/100Base-Tx POE IEEE 802.3af Ethernet ports on RJ45 connector + 1 100Mbps SFP slot. Complies with IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3x Full-Duplex Flow Control, IEEE 802.3af Power over Ethernet standards. Max15.4W POE for each port. Dimensions (W x D x H): 135 x 87.8 x 56 mm; Weight 842g; IP30 metal case; DIN bar or wall installation; 24 or 48 VDC power supply, dual power supply for redundancy with reverse polarity protection (power supply not included); Operating temperature -40-75 degrees C; Relative humidity 5-90 percent non-condensing.

Data Sheet

Feature	Value	Unit of measure
Codice Produttore	ISW-514PTF
Brand	SKILLEYE
Porte Ethernet PoE 10/100	4
Slot SFP	1	slot SFP 100Mbps
Potenza Max per Porta PoE	15.4	W
Alimentazione	48 o 52	VDC
Installazione	Barra DIN o a parete
Temperatura di esercizio	-40 ~ 75	°C
