Unmanaged Industrial Switch, 4 ports 10/100Base-T

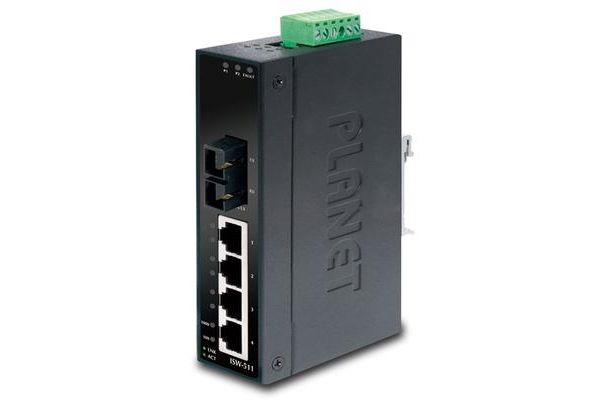

SKILLEYE ISW-511 Unmanaged Industrial Switch, 4 ports 10/100Base-T

MT Code: SKL_ISW-511
Manufacturer Code: ISW-511
Brand: SKILLEYE

Unmanaged Industrial Switch, 4 ports 10/100Base-Tx + 1 port 100Base-Fx; 4 Ethernet network port on RJ45 connector, one port for MultiMode 50/125, 62.5/125µm fiber optics on SC connector, transmission on 1310nm window. Optical fiber transmission up to 2km. Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standards. Dimensions (W x D x H): 135 x 97 x 32 mm; Weight 436g; IP30 metal case; DIN bar or wall installation; Power supply 12 to 48 VDC, 9.1W, dual power supply for redundancy with reverse polarity protection (power supply not included); Operating temperature -10-60 degrees C; Relative humidity 5-90 percent non-condensing.

Data Sheet

Feature	Value	Unit of measure
Codice Produttore	ISW-511
Brand	SKILLEYE
Alimentazione	12-48V DC
Porte 10/100Base-Tx	4
Porte Fibra Ottica	1
Tipo Fibra Ottica	MultiModale
Tipo Connettore Fibra	SC
Distanza di Trasmissione	2	Km
Alimentazione in Ingresso	12 ÷ 48	VDC
Potenza Assorbita	9.1	W
Tipo di Montaggio	Barra DIN o a parete
Temperatura di Utilizzo	-10 ~ +60	°C
Dimensioni	135 x 87 x 32	mm
