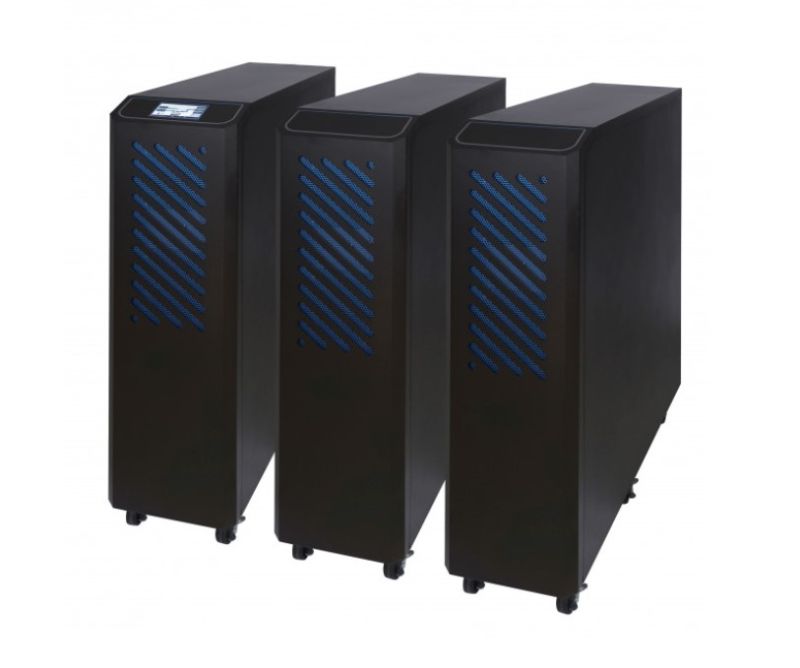

KERT KBS30KTT30 UPS three phase - three phase 30kVA 30'

POWER (kVA): 30 POWER (kW): 27 AUTONOMY (min): 30 INPUT Input: Three-phase + Neutral Input connection type: 4-wire terminals (separate by-pass input available on request) Nominal input voltage (Vac): 380/400/415 - 3 phases + neutral Voltage tolerance: -20%; +15% Input frequency [tolerance] (Hz): 50/60 [45 ÷ 65] Input power factor: 0.99 Current Distortion (THDi): < 3% OUTPUT Output type: 4 terminals Nominal output voltage (Vac): 400 (230 - 415 on request) Output frequency (Hz): 50/60 Dynamic voltage stability: IEC EN 62040-3 Class 1 ± 1% static Output power factor: Up to 0.9 inductive or capacitive, without power downgrading Allowable overload: By-pass: 1000% for 1 cycle By-pass: 150% continuous Inverter: > 150% for 10s Inverter: 126 ÷ 150% for 30s Inverter: 101 ÷ 125% for 10 min Efficiency (AC/AC): up to 98% Classification according to IEC EN 62040-3: VFI-SS-111 EPO: Yes Front panel: local EPO synoptic LED and keyboard display Communication: USB RS232 serial port Battery: Internal or external Grade IP protection: IP20 Color: RAL 7016 Installation layout: 10 cm from the wall, side by side Accessibility: Front access from above, cable entry from the bottom Operating temperature (°C): 0... 40 Altitude (m): <1000 Audible noise at 1 m (dBA): <62 Certification of quality, environment, health and safety: BS OHSAS 18001:2007 GOST ISO 14001:2004 ISO 9001:2008 Safety: EN 62040-1 EMC: EN 62040-2 Tests and performance: EN 62040-3 (VFI-SS-111) Degree of protection: IEC 60511 29 Marking: CE Width (mm): 450.00 Height (mm): 1200.00 Depth (mm): 600.00 Weight (kg): 550,00
