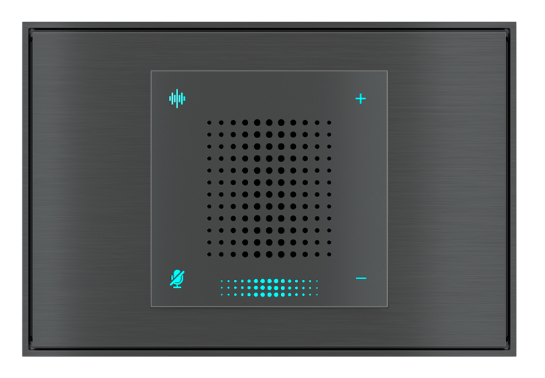

EKINEX EK-VA2-WL-GBR Voice Assistant I perform for wall installation

Voice Assistant I perform for wall installation

Voice assistant for wall box installation. The connection is WiFi only and therefore can be installed in any domestic system, as it does not require a connection to the KNX standard.

The EK-VA2-WL voice assistant which contains an internal WiFi communication module, is suitable for mounting on a round or square recessed wall box, equipped with fixing holes with 60mm center distance, or for mounting on an Italian standard 3-place rectangular flush-mounting box with fixing holes with 83.5mm center distance. Each device is supplied with the relative metal mounting support which, if necessary, can also be ordered separately; the supply is completed by a plastic adapter (to be ordered separately), the fixing screws and a 12-24 Vdc power supply.

Depending on the version, the voice assistant must be completed with a square or rectangular plate with a 60x60mm window and a square or rectangular frame. The plates are available in plastic, aluminium, metal HT or Fenix ​​NTM® in numerous color and finish variants. The frames are available in two formal solutions (Form and Flank) in plastic or aluminum material. The 'NF versions of the voice assistant are mounted without frame and have a side profile in a choice of black or white.

The voice assistants are connected to a 12-24 Vdc power supply; Configuration and commissioning is done via dedicated app. Through Delégo it is possible to configure the control of home automation equipment of KNX systems.
