ELKRON FIRE 80MF0300123 Wall emergency microphone
- MT Code
- ELK_I_80MF0300123
- Manufacturer Code
- 80MF0300123
- Brand
- ELKRON FIRE

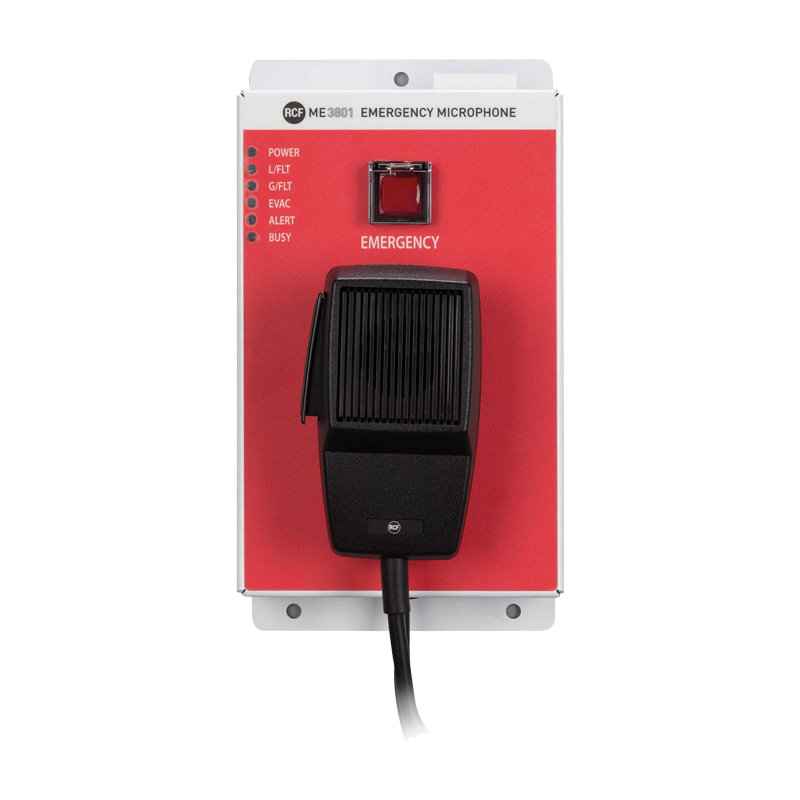

Wall emergency microphone
The wall-mounted emergency microphone allows you to make general calls with priority over all other inputs (including pre-recorded messages during ALERT and EVAC events). It is equipped with self-diagnostic functions and system status reporting, in compliance with the EN 54-16: 2008 standard. It is possible to connect up to four microphone bases in cascade on the line, the first is powered directly by the central unit, while the others require external 24V@500 mA power supplies (such as the optional power supply 80PS9400123). The microphone panel is equipped only with the protected bistable emergency button (with red light), which is used for alert and evacuation announcements with active alarms (general call function only). Microphone status is indicated in the bar of bright LEDs. Dimensions (W x H x D): 115 x 210 x 36 mm
EN54 part 16 certified
Codice Produttore | 80MF0300123 |
---|---|
Brand | ELKRON FIRE |
