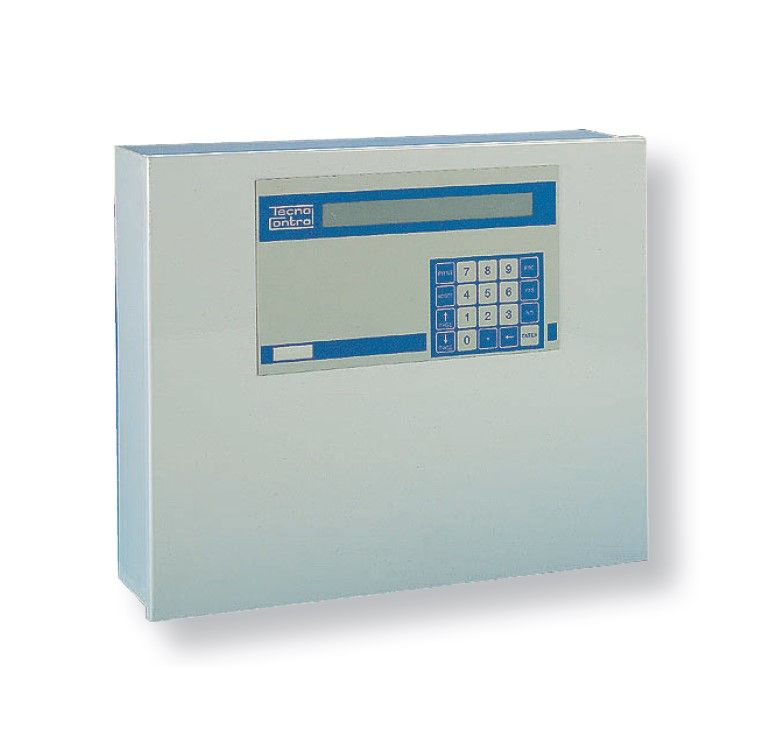

TECNOCONTROL CE700P Wall-mounted gas control unit for 23 CE380UR - 200 transmitters max

MT Code: TCC_CE700P
Manufacturer Code: CE700P
Brand: TECNOCONTROL

Description

Wall-mounted gas control unit for 23 CE380UR - 200 transmitters max

The microprocessor control unit can be used for large industrial systems and is set up for operation in combination with the CE380UR remote units which in turn manage up to 8 sensors each. It is possible to connect up to a maximum of 23 remote units to the CE700 for a total of 184 detectors and as many relays (with ES480UR cards). Considering the 16 inputs and 16 relays available directly in the control panel via special expansion cards, the total rises to 200 detectors and 200 relays available. The CE700 control units are available for mounting in the wall version or in the RACK version.

Compatible with all “TS” series sensors for flammable, toxic and oxygen gases, even simultaneously.
Serial port with MODBUS RTU protocol, with bidirectional communication for supervision
2 lines x 40 character backlit display
999 event memory
