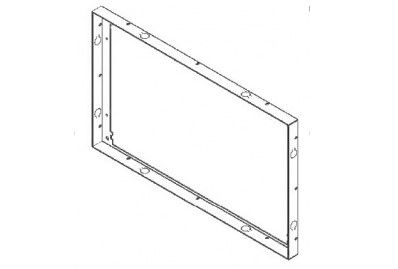

DIVUS MS15W wall mounting kit for recessed installation in plasterboard walls

<p/the DIVUS MS15W is a wall mounting kit designed for recessed installation of touch panels within plasterboard walls. This mounting system is characterized by a compact and stable structure, ideal for mortarless constructions.

Technical characteristics

The MS15W kit has the following dimensions: 506 x 302 x 90 mm, with a cut in the wall of 492 x 288 mm. It is designed to accommodate DIVUS SUPERIO touch panels with a 15.6-inch (39.6 cm) screen.

Interface and Connectivity

• Lan/Ethernet: 1 x GbE over 45-degree RJ45, compatible with the 802.3at™ standard
• WiFi: 802.11 a/b/g/n (optional)
• Bluetooth: 4.0 LE (optional)
• USB: 2 x USB 2.0 (external)
• Serial interface: 1 x RS-232/422/485 (optional on pinheader)
• Digital Input/Output: GPIO - 4 x Input/4 x Output for 4 relays with a maximum of 100 mA/5VDC

Display and Touchscreen

• 15.6 inch (39.6 cm) LED Backlight Widescreen TFT Screen
• Resolution: HD (1366*768 pixels)
• Brightness: 300 cd/m²
• Contrast: 500:1
• Projective capacitive touchscreen with 3 mm front glass, dual touch capable

Other Features

• Processor: Dual-core Cortex-A72 1.8GHz and Quad-core Cortex-A53 1.4GHz
• Memory: 2 GB (optional 4GB)
• Storage memory: 16GB eMMC
• Power supply: PoE+ compatible with CAT5e/CAT6 UTP cable, maximum 100m, or 12-32 VDC
• Maximum power consumption: 25 W without peripherals
• Sensors: proximity sensor, light sensor, gyroscope for automatic orientation
• Multimedia: 2 Watt RMS speaker (external), microphone (external) with echo cancellation for two-way intercom communication

The MS15W kit is ideal for professional applications that require an elegant and functional installation, ensuring easy and quick assembly by a single operator.
