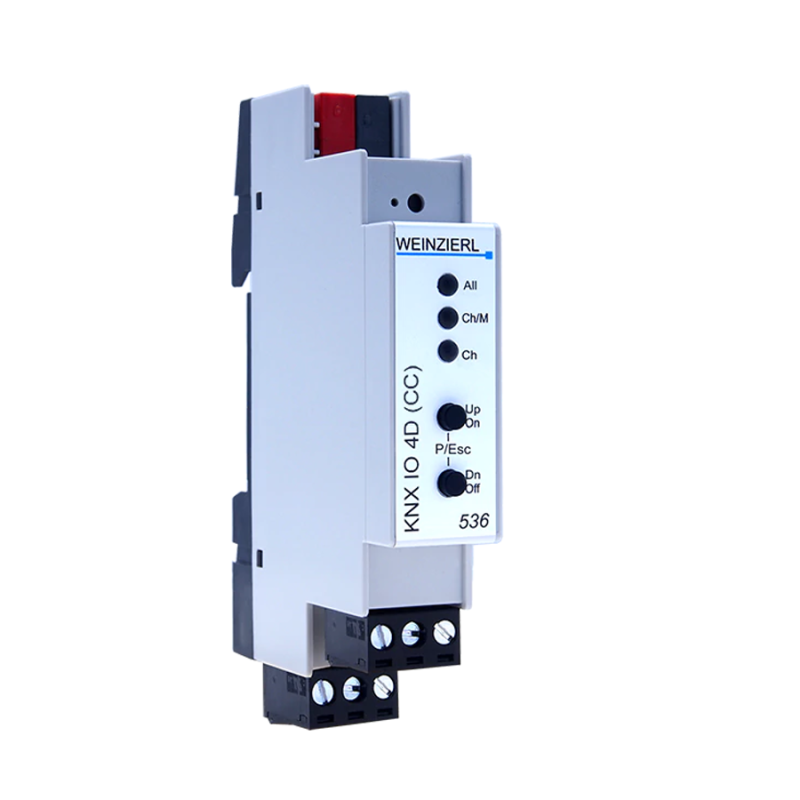

WEINZIERL 5354 KNX IO 536 CC ‚ KNX LED dimming actuator

WEINZIERL 5354 KNX IO 536 CC ‚ KNX LED dimming actuator

MT Code
WNZ_5354
Manufacturer Code
5354
Brand
WEINZIERL
WEINZIERL
CORSO ZERO RETI 23 MAGGIO
Description

The KNX IO 536 CC (4D) is a compact RGB / RGBW / Tunable White dimming actuator with 4 outputs (constant current). The dimming actuator can be used e.g. for LED panels or stripes with RGB / RGBW / Tunable White configuration or as 4 independent dimmer channels. Every configuration allows controlling the channel by switching, rel. dimming and dimming value.

Several comfort functions are integrated as well, including scenes, slumber fading, staircase light and sequencer. Two push buttons and three LEDs allow a local operation and a visualization of the device state. In addition to the output channels the device includes 16 independent functions for logic or timer control.


TECHNICAL DATA:

Mechanical data

Housing: plastic

DIN rail mounted device, width: 1 modules (18 mm)

Weigth: approx 55 g

Controls and indicators

2 buttons and 3 LEDs, multicolor

KNX programming button with LED (red)

KNX

Device Model System B

Compatible with ETS 5 (or higher)

Connectors

Connector for KNX Bus (red / black)

Pluggable screw connector (3 poles) for dimming channel 1 and power supply

Pluggable screw connector (3 poles) for dimming channel 2/3/4

Cross-section of connectors: 1.5 … 2.5 mm²

Output channel (Dimming)

Dimmer for LEDs with constant current input

Supply voltage: 12 .. 48 V⎓

Max. output voltage < Supply voltage

Max. configurable load current: 500 mA each channel (channels can be bundled)

Max. Pout: 96 W

Data Sheet
Codice a barre 4260262773548
Codice Produttore 5354
Brand WEINZIERL
