ELSNER 20554 WG AQS-TH-UP- aluminium
- MT Code
- ELS_20554
- Manufacturer Code
- 20554
- Brand
- ELSNER
Description

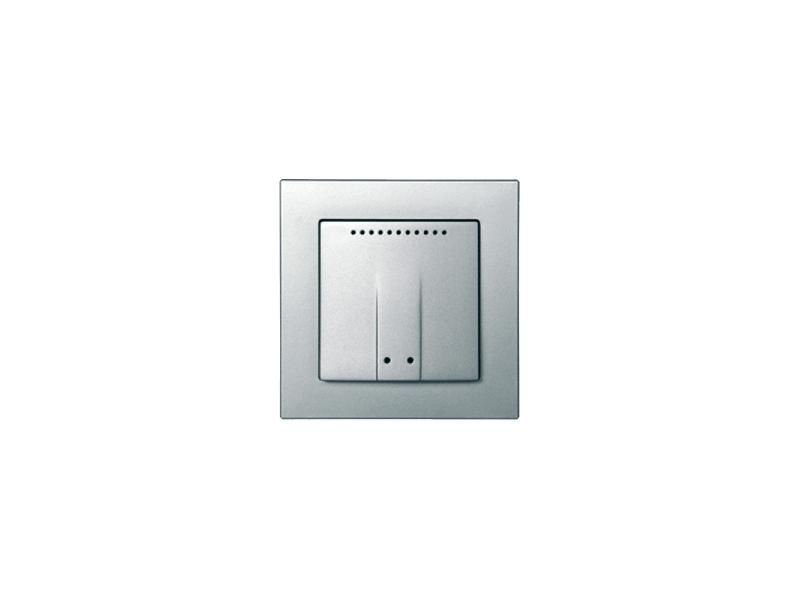

The WG AQS/TH-UP sensor transmits air temperature, humidity and CO2 content to the WS1 Color/Style or (KNX) WS1000 Color/ Style control unit via radio. Multiple wireless sensors can be programmed on a control unit. The programming is described in the Chapter “Programming Radio Connections” (Control Unit User Manual)
. The WG AQS/TH-UP consists of the housing, the sensor board/support plate, the CO2 sensor and a frame. As an alternative to the supplied frame, a frame suitable for the switch system in the building can be used. You will need a box (Ø 60 mm, 42 mm deep, not supplied).
For the power supply (11... 30 V DC), for example, 12 V DC can be taken from the control unit connection board (multifunction input).
TECHNICAL SHEET
Data Sheet
Codice Produttore | 20554 |
---|---|
Brand | ELSNER |
