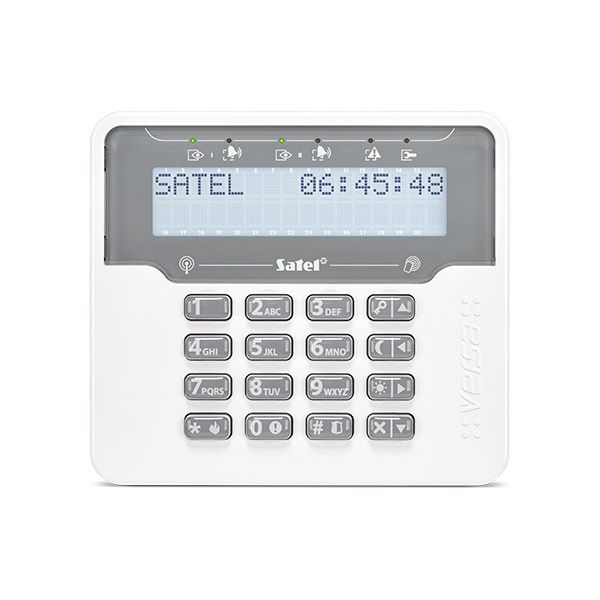

SATEL VERSA-KWRL2 Wireless LCD keypad with 125 KHz proximity reader (for ABAX 2. white backlight)

Wireless LCD keypad with 125 KHz proximity reader (for ABAX 2. white backlight)

Wireless keyboard for the operation and programming of the VERSA series alarm control panels. It is designed to operate as part of the ABAX 2 / ABAX bidirectional system. To connect the keypad to the alarm panel, you need a controller. In the ABAX 2 system all transmissions are encrypted in the AES standard.

VERSA-KWRL2 complies with the requirements of EN 50131 Grade 2.

The device is equipped with a display (2×16 characters) and 12 keys (complies with the telephone standard). Four of these are used to navigate through the menu and to arm and disarm the alarm. The keypad can also be used to activate alarms: FIRE, HELP, PANIC.

The LEDs indicate the status of the partitions and the system, while the piezoelectric transducer emits acoustic signals (of the events selected in the system).

VERSA-KWLR2 has an integrated card and proximity tag reader. They can be used to arm and disarm the alarm system.

The display and keys are backlit in white.

The keyboard is remotely configurable, and its firmware is also remotely upgradeable. The entire process runs in the background.

The keyboard is powered by two CR123A 3V batteries, constantly monitored. The device works in active or stand-by mode (energy saving after 20 seconds of inactivity). To further reduce energy consumption, you can disable the proximity card reader (e.g. when it will not be used for alarm system operation).

VERSA-KWRL2 has tamper protection against opening the container and/or removal from the holder.
