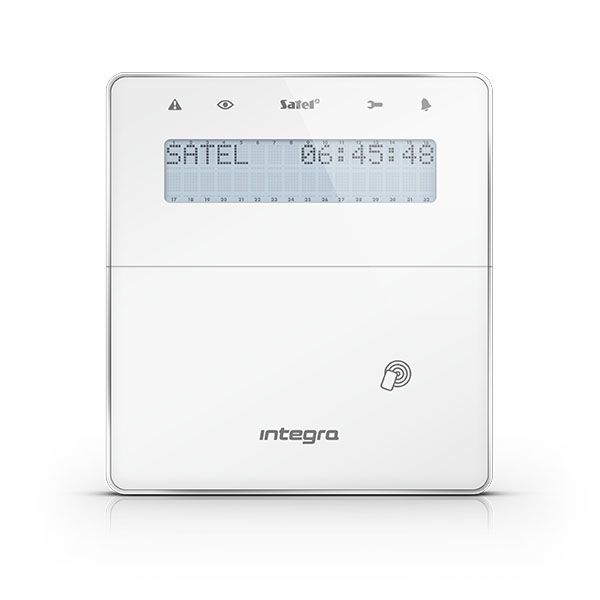

SATEL INT-KWRL2-WSW Wireless LCD keypad with proximity reader and door - ABAX 2 series - white colour. Also available in colors - silver (INT-KWRL2-SSW) and black (INT-KWRL2-BSB)
- MT Code
- SAT_INT-KWRL2-WSW
- Manufacturer Code
- INT-KWRL2-WSW
- Brand
- SATEL
Description
Wireless LCD keypad with proximity reader and door - ABAX 2 series - white colour. Also available in colors - silver (INT-KWRL2-SSW) and black (INT-KWRL2-BSB)
Wireless keyboard for the operation and programming of INTEGRA series alarm control panels. It is designed to operate as part of the ABAX 2 / ABAX bidirectional system. To connect the keypad to the alarm panel, you need a controller. In the ABAX 2 system all transmissions are encrypted in the AES standard.
INT-KWRL2 complies with the requirements of EN 50131 Grade 2.
The device is equipped with a display (2x16 characters) and 12 keys (complies with the telephone standard). Four of these are used to navigate through the menu and to arm and disarm the alarm. The keypad can also be used to activate alarms: FIRE, ASSISTANCE, PANIC.
The LEDs indicate the status of the partitions and the system, while the piezoelectric transducer emits acoustic signals (of the events selected in the system).
INT-KWLR2 has an integrated card reader and proximity tag. They can be used for arming and disarming the alarm system.
The display and keys are backlit in white.
The keyboard is remotely configurable, and its firmware is also remotely upgradeable. The entire process runs in the background.
The keyboard is powered by two CR123A 3V batteries, constantly monitored. The device works in active or stand-by mode (energy saving after 20 seconds of inactivity). To further reduce energy consumption, you can disable the proximity card reader (e.g. when it will not be used for alarm system operation).
INT-KWRL2 has tamper protection against opening the container and/or removal from the holder.
- compliant with EN 50131 Grade 2
- compatible with INTEGRA series alarm control panels (version 1.19 or later)
- When working as part of a wireless system, a controller is required to connect to the alarm panel:
- ABAX 2: ACU-220 or ACU-280
- ABAX: ACU-120 or ACU-270
- Two-way encrypted radio communication in the 868 MHz frequency band
- flown in free field:
- in ABAX 2: up to 800 m
- in ABAX: up to 800 m (with ACU-120) / up to 400 m (with ACU-270)
- LEDs indicating partition and system status
- white backlighting of the display and keys
- card reader and proximity tag
- acoustic notification of selected events in the system
- FIRE, RESCUER and PANIC alarms can be activated from the keypad
- remote configuration and firmware update
- tamper protection against opening the case and/or removal from the stand
- power supply: 2 CR123A 3 V batteriesWireless LCD keypad with proximity reader and door - ABAX 2 series - white colour. Also available in colors - silver (INT-KWRL2-SSW) and black (INT-KWRL2-BSB)
- Wireless keyboard for the operation and programming of INTEGRA series alarm control panels. It is designed to operate as part of the ABAX 2 / ABAX bidirectional system. To connect the keypad to the alarm panel, you need a controller. In the ABAX 2 system all transmissions are encrypted in the AES standard.
- INT-KWRL2 complies with the requirements of EN 50131 Grade 2.
- The device is equipped with a display (2x16 characters) and 12 keys (complies with the telephone standard). Four of these are used to navigate through the menu and to arm and disarm the alarm. The keypad can also be used to activate alarms: FIRE, ASSISTANCE, PANIC.
- The LEDs indicate the status of the partitions and the system, while the piezoelectric transducer emits acoustic signals (of the events selected in the system).
- INT-KWLR2 has an integrated card reader and proximity tag. They can be used for arming and disarming the alarm system.
- The display and keys are backlit in white.
- The keyboard is remotely configurable, and its firmware is also remotely upgradeable. The entire process runs in the background.
- The keyboard is powered by two CR123A 3V batteries, constantly monitored. The device works in active or stand-by mode (energy saving after 20 seconds of inactivity). To further reduce energy consumption, you can disable the proximity card reader (e.g. when it will not be used for alarm system operation).
- INT-KWRL2 has tamper protection against opening the container and/or removal from the holder.
- compliant with EN 50131 Grade 2
- compatible with INTEGRA series alarm control panels (version 1.19 or later)
- When working as part of a wireless system, a controller is required to connect to the alarm panel:
- ABAX 2: ACU-220 or ACU-280
- ABAX: ACU-120 or ACU-270
- Two-way encrypted radio communication in the 868 MHz frequency band
- flown in free field:
- in ABAX 2: up to 800 m
- in ABAX: up to 800 m (with ACU-120) / up to 400 m (with ACU-270)
- LEDs indicating partition and system status
- white backlighting of the display and keys
- card reader and proximity tag
- acoustic notification of selected events in the system
- FIRE, RESCUER and PANIC alarms can be activated from the keypad
- remote configuration and firmware update
- tamper protection against opening the case and/or removal from the stand
- power supply: 2 CR123A 3 V batteries
Data Sheet
| Codice Produttore | INT-KWRL2-WSW |
|---|---|
| Brand | SATEL |
