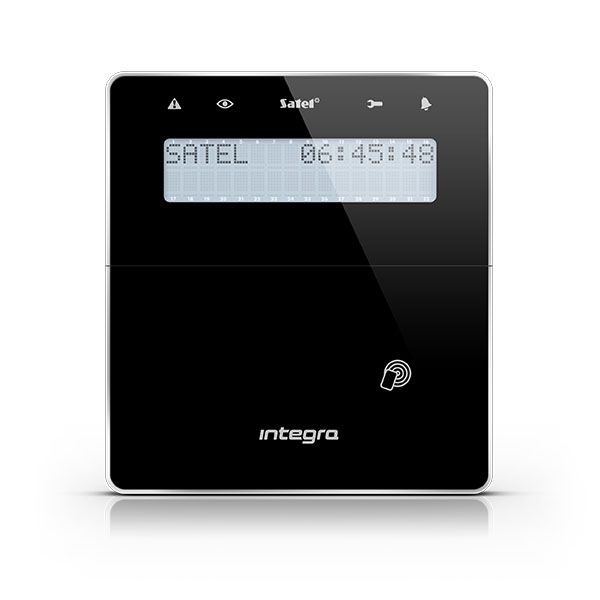

SATEL INT-KWRL2-BSB Wireless LCD keypad with proximity reader and door (ABAX 2, white backlight, black front, silver frame, black bottom)
- MT Code
- SAT_INT-KWRL2-BSB
- Manufacturer Code
- INT-KWRL2-BSB
- Brand
- SATEL
Description
Wireless LCD keypad with proximity reader and door (ABAX 2, white backlight, black front, silver frame, black bottom)
Wireless keyboard for the operation and programming of INTEGRA series alarm control panels. It is designed to operate as part of the ABAX 2 / ABAX bidirectional system. To connect the keypad to the alarm panel, you need a controller. In the ABAX 2 system all transmissions are encrypted in the AES standard.
PERFORMANCE
- compliant with EN 50131 Grade 2
- compatible with INTEGRA series alarm control panels (version 1.19 or later)
- When working as part of a wireless system, a controller is required to connect to the alarm panel:
- or ABAX 2: ACU-220 or ACU-280
- or ABAX: ACU-120 or ACU-270
- Two-way encrypted radio communication in the 868 MHz frequency band
- flown in free field:
- or in ABAX 2: up to 800 m
- or in ABAX: up to 800 m (with ACU-120) / up to 400 m (with ACU-270)
- LEDs indicating partition and system status
- white backlighting of the display and keys
- card reader and proximity tag
- acoustic notification of selected events in the system
- FIRE, HELP and PANIC alarms can be activated from the keypad
- remote configuration and firmware update
- tamper protection against opening the case and/or removal from the stand
- power supply: 2 CR123A 3 V batteries
Data Sheet
| Codice Produttore | INT-KWRL2-BSB |
|---|---|
| Brand | SATEL |
