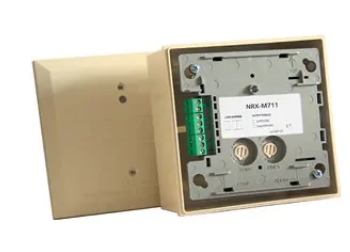

NOTIFIER NRX-M711 ADDRESSABLE WIRELESS MODULE

Wireless module addressable by means of rotary selectors equipped with a supervised input and a controlled or potential-free output programmable by an AgileIQ configuration system. The NRX-M711 radio input and output module is a battery-powered radio frequency device designed to be used with the NRXI-GATE radio gateway. It contains a transceiver and is integrated into an addressable fire system using a proprietary communication protocol. NRX-M711 is certified according to EN54-18 and EN54-25. and complies with the requirements of the EN 300 220 and EN 301 489 standards for compliance with the R and TTE Directive. Standby current. 130 μA at 3 V DC (typical in normal operating mode) Red LED current. 2 mA Resynchronization time. 35s from turning on the device to normal RF communication when the network is active) Batteries. 4 Duracell Ultra 123 Battery life. 4 years at 25°C Radio frequency. 865-870 MHz. RF output power. 14 dBm (max) Range. 500 m (typical in free air) Relative humidity. from 10 percent to 93 percent (without condensation)
