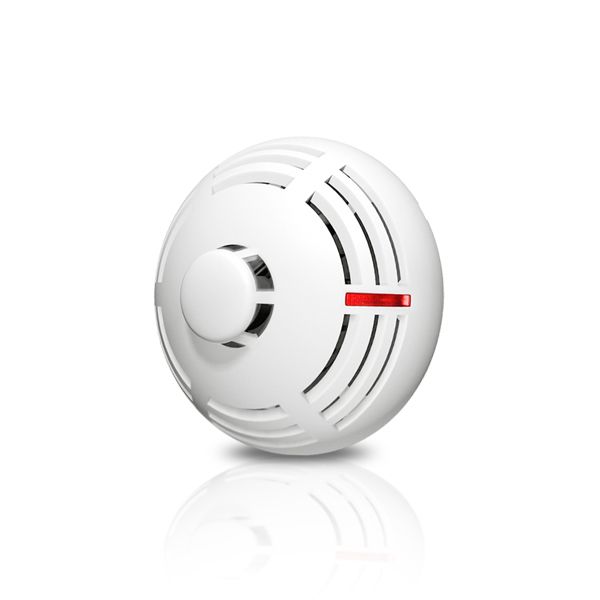

SATEL MSD-300 Wireless smoke and heat detector

MT Code: SAT_MSD-300
Manufacturer Code: MSD-300
Brand: SATEL

Description

Wireless smoke and heat detector

The smoke and heat detector performs the function of detecting the start of a possible fire. In addition to transferring threat information to the control panel, the MSD-300 detector can warn of the dangerous condition, with the help of a built-in acoustic signaller. Unlike typical smoke detectors, this equipment reacts not only to visible smoke, but also to rapidly rising temperatures, thus ensuring almost total protection against the risk of fire.

compatible with the MICRA alarm module, PERFECTA 16-WRL, PERFECTA 32-WRL and PERFECTA-T 32-WRL control panels as well as the VERSA-MCU and MTX-300 wireless system controllers
any radio transmissions from a detector can be retransmitted by the MRU-300
photoelectric system for detecting visible smoke, which accompanies the development of a fire, compliant with EN 54-7
temperature rise detection system compatible with the requirements required by class A1R, compliant with EN 54-5
built-in acoustic alarm signaller
detection and reporting of detection chamber contamination, which simplifies system diagnostics and maintenance
self-diagnostic detection chamber cleaning, which simplifies periodic checking of the correct operation of the equipment
precision mechanical filter against the entry of dust and insects inside the detector
energy saving system, which allows operation for several years, without requiring the replacement of the CR123A lithium battery
tamper detection - opening of the housing
IP protection level: IP20
Destination:
Fire reporting in small rooms, such as: kiosks, shops, second homes, garages, and laboratories.

Contents of the suit:

Detector, dust shield, CR123A lithium battery, mounting parts, operation manual.
