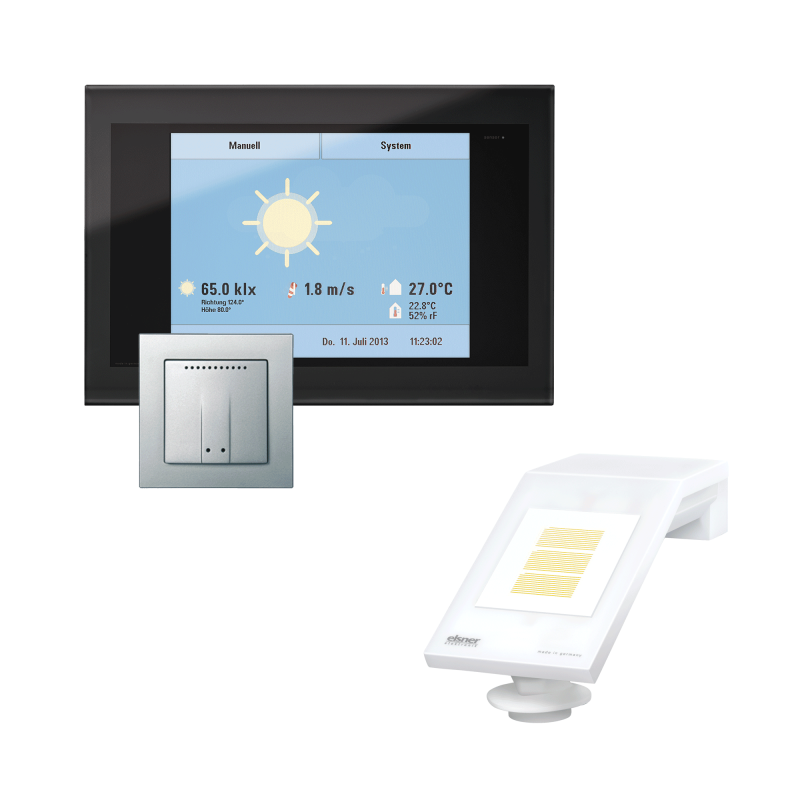

ELSNER 60207 WS1000 Style-6- black Building control system for 6 drives 230 V

ELSNER 60207 Product Description

The ELSNER 60207 building control system, model WS1000 Style-6, is a complete solution for managing various home automation and greenhouse components. This system is designed to offer efficient and customizable management of awnings, curtains, shutters, windows and sliding doors.

Key Features

• Central unit with 6 drive outputs at 230 V AC or free potentials, suitable for controlling different types of motors.
• 2 multifunctional outputs for controlling heating, cooling, ventilation, alarms, lighting and gutter heating systems.
• 2 multifunctional inputs for motion detectors, smoke detectors, climate control sensors and closed contacts for sliding doors.

User Interface and Functionality

• 5.7-inch color touch display with ultra flat design thanks to magnetic mounting.
• Function of displaying current weather conditions or turning off/dimming the display in sleep mode to save energy and not disturb the room environment.
• Adjustable display language (English, German, French, Italian).
• Picture frame function via SD card.

Motor Control and Accessories

• Centralized control of multiple motors in a drive group using the IMSG 230 motor control unit.
• Separate manual action of the individual motors using additional buttons.
• Automatic adjustment of the angle of the curtain blades according to the position of the sun, ensuring maximum light in the room without direct exposure to the sun.
• 'Slat Turning' and 'Canvas Tightening' functions for curtains and awnings respectively.

Technical characteristics

• Plastic and glass case, available in white/gray or black.
• Front display size: 181mm x 131mm, mounting depth: 8mm, mounting box dimensions: 172mm x 122mm x 81mm.
• Total weight: about 1.25 kg.
• Operating ambient temperature: +5°C to +40°C.
• Ambient humidity (non-condensing): 0% - 95%.
• Storage temperature: -25°C to +70°C.
• Overvoltage category: III.
• Protection class: II.
• Degree of pollution: 2.
• Wireless radio frequency: 868.2 MHz
