ELSNER 60202 WS1000 Style-6- White building control system for 6 230 V drives

ELSNER 60202 WS1000 Style-6- White building control system for 6 230 V drives

MT Code
ELS_60202
Manufacturer Code
60202
Brand
ELSNER
Cyber Monday 2024
Description

The ELSNER 60202 control system, called WS1000 Style-6, is a complete solution for managing shading and ventilation systems in domestic and commercial environments.

Key Features

This system is designed to control up to 6 230 V drives, making it ideal for managing awnings, curtains, blinds and sliding doors.

Display and User Interface

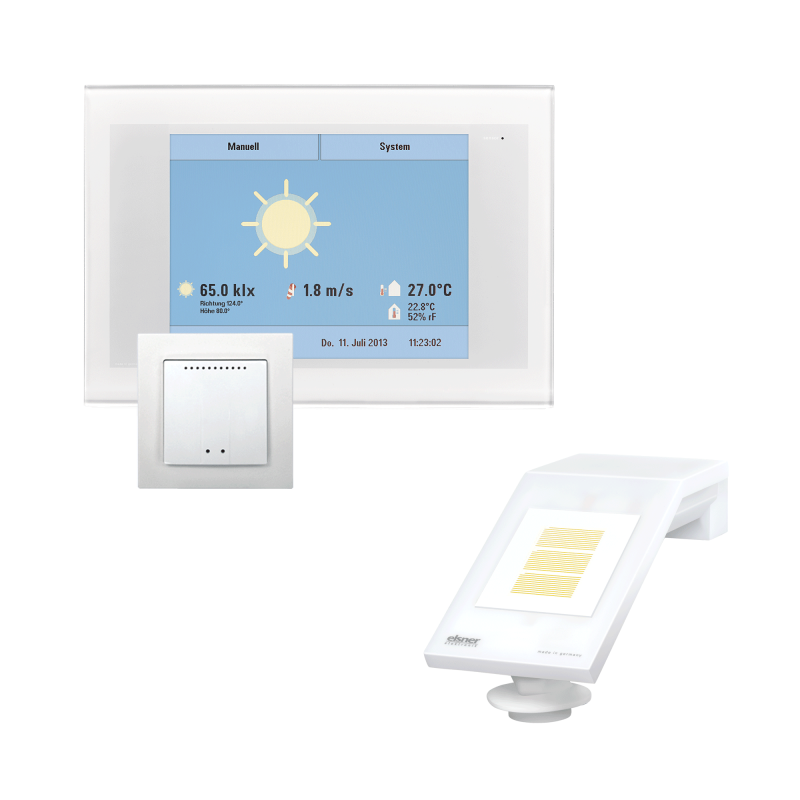

The WS1000 Style-6 is equipped with a glass panel with an 8.4-inch touch screen display, characterized by an extremely flat design thanks to the magnetic mount. The display can display current weather data in sleep mode and can be turned off or reduced to a minimum to save energy and not disturb the room environment.

Languages and Customizations

The interface is available in several languages, including English, German, French and Italian. Each drive and unit can be named individually, for example, “East Tent”.

Control functions

  • Centralized control of multiple drives in a drive group using the IMSG 230 motor control unit.
  • Automatic positioning of the angles of the curtain blades according to the position of the sun, ensuring the maximum amount of light in the room without direct exposure to the sun.
  • 'Slat Turning' and 'Canvas Tightening' functions for curtains and awnings, respectively.
  • Multifunctional outputs for heating, cooling, supply air, alarm systems, lighting, gutter heating or dimmers.
  • Multifunctional inputs for motion detectors, smoke detectors, climate control detectors (independent heating/cooling status), closed contacts (for sliding doors) or triggers for automatic resets.

Security and Protection

The settings menu can be protected with an access code to prevent unauthorized changes. The functions of the arrow keys can be adapted to the actual direction of movement (manual direction), for example for curtains that extend from bottom to top.

Technical characteristics

  • Casing: glass, plastic
  • Colors: white/gray, dark grey/black
  • Degree of protection: IP20
  • Front display size (W × H): 270 mm × 185 mm
  • Mounting depth: 9 mm
  • Total weight: about 2.1 kg
  • Ambient temperature: +5... +40°C
  • Non-condensing ambient humidity (RH): 0... 95%
  • Storage temperature: -25... +70°C
  • Overvoltage category: III
  • Protection class: II
  • Pollution degree: 2
  • Radio frequency: 868.0... 868.6 MHz
Data Sheet
Codice Produttore 60202
Brand ELSNER
Download
