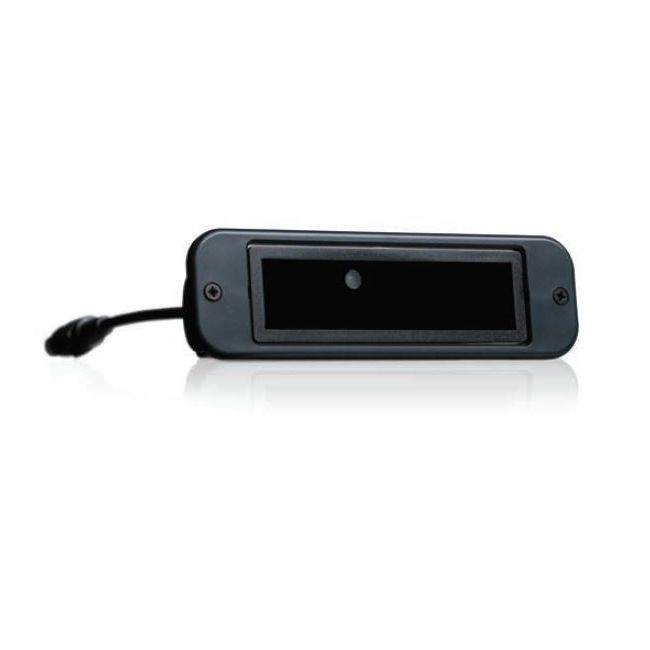

FAAC 105118 ACTIVE INFRARED RADAR SENSOR FOR MOTION PRESENCE 1-SPOT X1S

ACTIVE INFRARED RADAR SENSOR FOR MOTION PRESENCE 1-SPOT X1S

X1S active infrared “motion or presence” sensor — 1 SPOT

TECHNICAL CHARACTERISTICS: Max power: 120 mA @ 24V ~/80 mA @ 24 V Installation height: 0.6 - 3 m Supply voltage: 12V - 24V ~/ -5%/+10% Detection area: 35 x 70 mm (at a height of 2.2 m) Operating ambient temperature: From -25 °C to +55 °C; 0-95% rel humidity. Non-condensing Contact maintenance time: 0.5 s Degree of protection: IP53 Response time: 64 ms Detection mode: presence detector with distance measurement Technology: active infrared Output type: relay (contact free of potential); Maximum voltage at contacts: 42V ~/; 1A (resistive); Maximum interruption power: 30W (V)/60VA (~) Compliance with standards: electromagnetic compatibility (EMC) according to 2004/108/EEC Reflection: min. 10% at an IR wavelength of 850 nm Type of input: 1 optocoupler (potential-free contact); Maximum voltage at contacts: 30V; Voltage threshold: high mode >10V; low mode <1V
