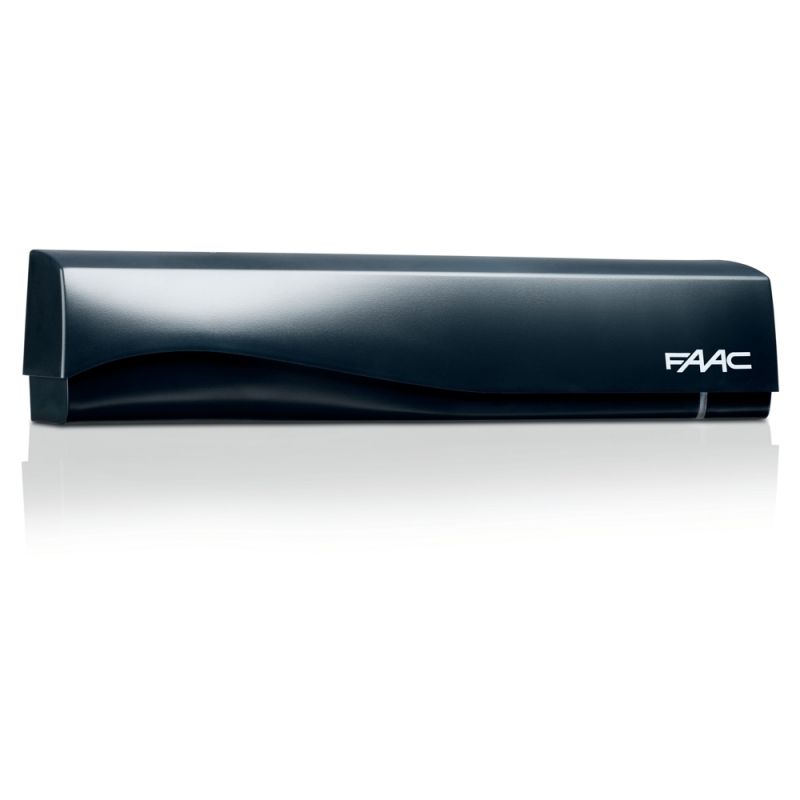

FAAC 105090 ACTIVE INFRARED SENSOR XBFA ON

ACTIVE INFRARED SENSOR XBFA ON

Active infrared sensor 'movement or presence'

TECHNICAL CHARACTERISTICS: Power supply: 12 V — 30 V DC -5%/+10% (to be operated only with power units compatible with SELV regulations) Consumption: < 2.2 W Installation height: From 1.8 m to 3 m. Monitoring input sensitivity: < 1 V: Log. L; > 10 V: Log. H (max. 30 V) Temperature range: From -25 °C to +55 °C Degree of protection: IP54 Noise: < 70 dB Estimated lifespan: 20 years Certification: MD 2006/42/EC; ROHS 2 2011/65/EU; EN 16005:2012; EN 12978:2009; EN IEC 62061:2005 SIL2; EN 61496-1:2012 ESPE Type 2; EN ISO 13849-1:2008 Pl “c” CAT.2 (provided that the control system monitors the detector at least once for each door cycle) Mode of detection: Standard response time: <256 ms Technology: Active infrared with analysis of Background Spot diameter: 0.1 m (standard) Number of spots: 24 Number of curtains: 2 Angle: From -4° to +4° (adjustable) Output: Solid-state relay (without potential, without polarity) Max. output current: 100 mA Max. interruption power: 42 V AC/DC Maintenance time: from 0.3 sec. to 1 s (not adjustable) Required monitoring response time: Standard: < 5 ms
