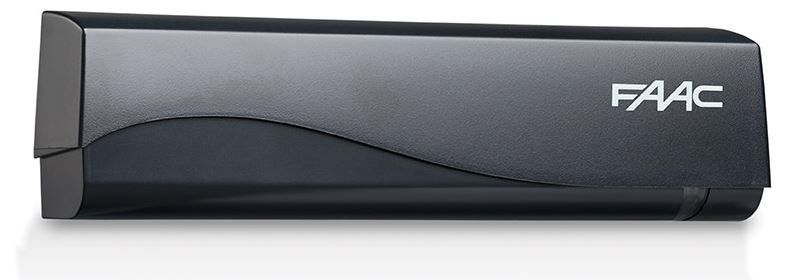

FAAC 105132 XBFA ST ACTIVE INFRARED SENSOR

XBFA ST ACTIVE INFRARED SENSOR

Active infrared sensor 'movement or presence'

TECHNICAL CHARACTERISTICS: Max power < 2.5 W Installation height From 2 m to 3.5 m Supply voltage 12 V - 30 V -5%/+10% Ambient operating temperature -25°C to +55°C; 0-95% relative humidity, non-condensing Degree of protection IP54 Noise < 70 dB Life expectancy 20 years Detection mode Presence; Standard response time: <200 ms (max. 500 ms) Active infrared technology with background analysis; Spot : 5cm x 5cm (typ); Number of spots: max. 24 per curtain; Number of tents: 2 Type of SOLID STATE RELAY output (standard); 100 mA; 42 V AC/DC; Maintenance time: 0.3 to 1 s Monitoring input Sensitivity: Low: < 1 V; Alta: > 10 V (max. 30 V); Required test response time: standard: < 5 ms Application Directives R&TTE 1999/5/EC; EMC 2004/108/EC; MD 2006/42/EC; RoHS 2002/95/EC

Compliance with EN 16005:2012 Chapter 4.6.8; EN ISO 13849-1:2008 PL “c” CAT. 2 (provided that the control system monitors the detector at least once for each port cycle); EN 12978; IEC 61496-1:2012 ESPE Type 2; DIN 18650-1:2010 Chapter 5.7.4; BS 7036-1:1996 Chapter 8.1
