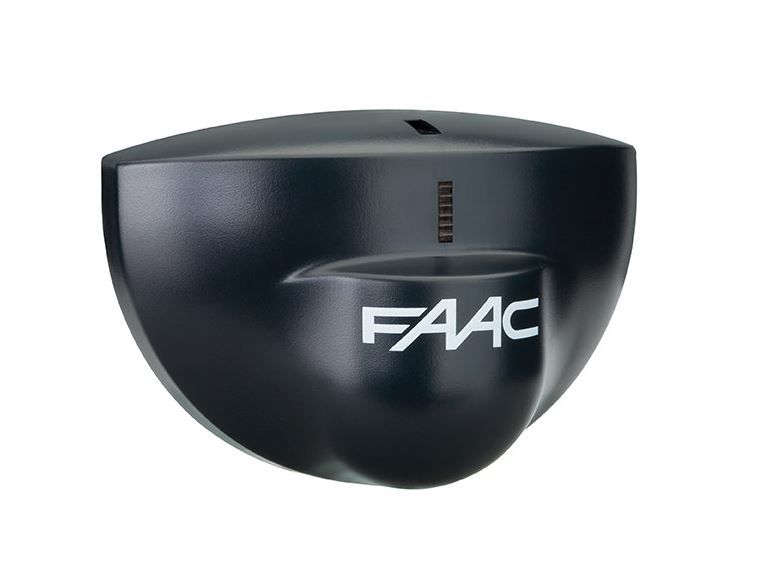

FAAC 105091 XBFRM1 AUTOMATIC DOOR MONODIRECTIONAL MICROWAVE RADAR

XBFRM1 AUTOMATIC DOOR MONODIRECTIONAL MICROWAVE RADAR

Unidirectional microwave radar

TECHNICAL CHARACTERISTICS: Max power: < 2 W Output power: <20 dBm EIRP Output power density: < 5 mW/cm² Emission frequency: 24.150 GHz Installation height: from 1.8 m to 3 m Frequency of use: 24.150 GHz Supply voltage: 12 V - 24 V ~ +/ -10%; 12 V - 30 V +/ -10% Frequency of the power supply: 50 to 60 Hz Detection area: 4 m (L) x 2 m (P) Angle of inclination: 0° to 90° vertically; -30° to +30°° sideways Dimensions (LxDxH): 120 mm (L) x 80 mm (H) x 50 mm (P) Weight: 120 g Cable length: 2.5 m Ambient operating temperature: -20 °C to + 55 °C Degree of protection: IP64 Type of crankcase: ABS Case color: smoke black Detection mode: Movement; Min. detection speed: 5 cm/s Technology: microwave doppler radar Output type: SOLID STATE RELAY (without potential, without polarity); Max. output current: 1 A (resistive); Contact voltage: 42V AC/DC; Contact capacity: 30 W (DC)/60 VA (Direct AC) Application tive: R&TTE 1999/5/EC; EMC 2004/108/EC
