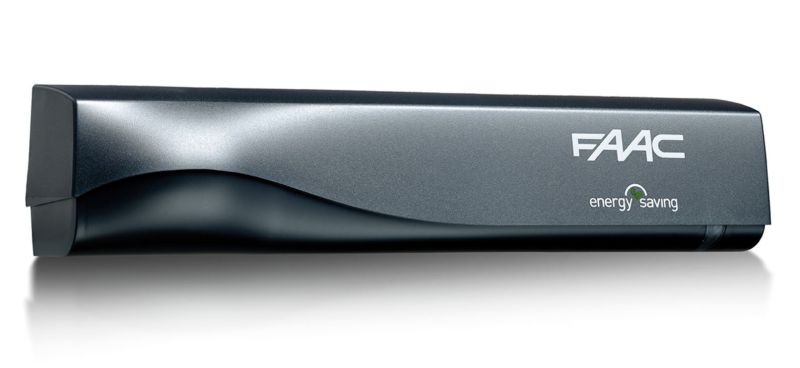

FAAC 105114 RADAR UNIDIRECTIONAL SENSOR WITH INFRARED SECURITY XDT1

RADAR UNIDIRECTIONAL SENSOR WITH INFRARED SECURITY XDT1

Unidirectional 'Movement and Presence' dual-technology radar

TECHNICAL CHARACTERISTICS: Max power: < 2.5 W Installation height: 2 m to 3.5 m (local regulations may have an impact on the recommended mounting height) Supply voltage: 12 V - 24 V ~ +/ -10%; 12 V - 30 V +/ -10% (to be operated only with power units compatible with SELV regulations) Ambient operating temperature: -25°C to +55°C; 0-95% relative humidity, non-condensing Degree of protection: IP54 Noise: < 70 dB Life expectancy: 20 years
