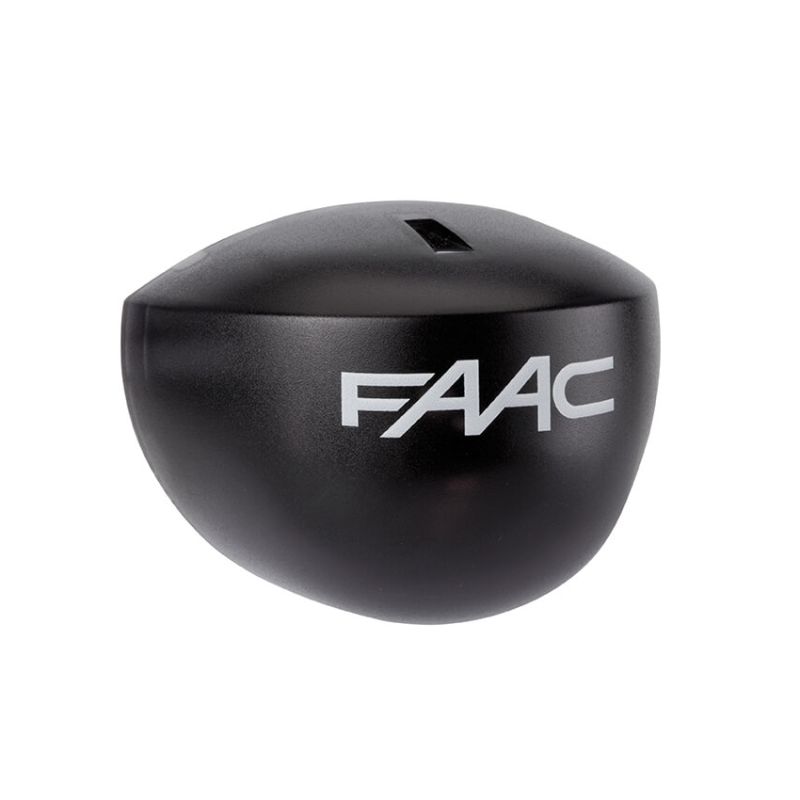

FAAC 105129 XM100 ONE UNIDIRECTIONAL MICROWAVE SENSOR RADAR

XM100 ONE UNIDIRECTIONAL MICROWAVE SENSOR RADAR

Unidirectional 'compact' microwave radar

TECHNICAL CHARACTERISTICS: Max power: < 2 W (VA) Output power: <20 dBm EIRP Output power density: < 5 mW/cm² Emission frequency: 24.175 GHz Installation height: from 1.8 m to 3 m Supply voltage: 12 V - 24 V +30%/-10% Detection area: 4 m (L) x 2 m (D) Inclination angle: from 0° to 90 vertical and -30° to + 30° lateral Dimensions (LxDxH): 80 mm (W) x 60 mm (H) x 55 mm (D): 140 g Cable length: 2.5 m Ambient operating temperature: -20°C to +55°C Degree of protection: IP54 Type of housing material: ABS & polycarbonate Case color: smoke black Mode of detection: Movement; Min. detection speed: 5 cm/s Technology: hyperfrequency and microprocessor Output type: SOLID STATE RELAY (without potential, without polarity); Max. output current: 100 mA; Contact voltage: 35VDC and 24VAC Application Directives: R&TTE 1999/5/EC; EMC 2004/108/EC
