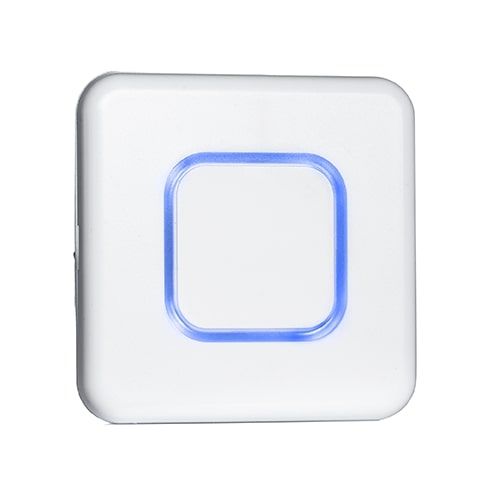

FAAC 105938 Built-in Touch Button XMS CH-IN RECESSED TOUCH BUTTON
- MT Code
- FAA_105938
- Manufacturer Code
- 105938
- Brand
- FAAC
Built-in Touch Button XMS CH-IN RECESSED TOUCH BUTTON
- Antimicrobial faceplate - multicolor LED - PULSE mode: recommended for automatic door type applications - TOGGLE mode: recommended for switch type applications
TECHNICAL CHARACTERISTICS: Technology Microwave motion detector Detection mode Bidirectional movement Supply voltage 12V — 24V ~/ +30%/— 10% Power supply frequency 50 to 60 Hz Max power < 1.5 W Emitted power density < 5 mW/cm2 Emission frequency 24.150 GHz Detection area +/- 10 — 50 cm if 90° movement towards the detector (adjustable) Ambient operating temperature From -20 °C to +55 °C Contact maintenance time 0.5 s (in PULSE mode) Degree of protection IP65 (if the front side and seal are mounted on a smooth surface) Type of output 2 electronic relays (galvanic isolation — without polarity) Max. voltage: 42 V AC/DC Max. current: 100 mA Type of crankcase material PMMA/PC The front of the XMS CH is treated with biomaster silver bioacid tested according to ISO 22196:2011. Use organic acids responsibly.
| Feature | Value | Unit of measure |
|---|---|---|
| Codice Produttore | 105938 | |
| Brand | FAAC |
