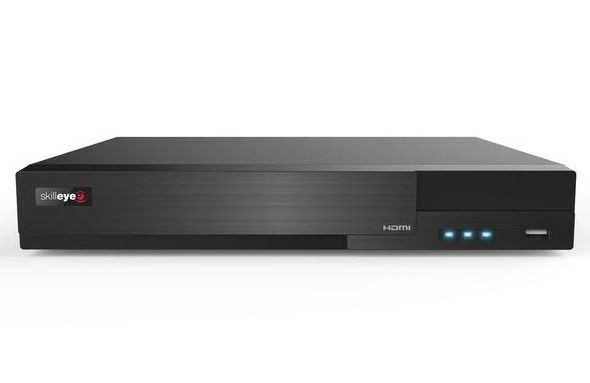

SER-7E0820TEF XVR TKH SkillEye 5 in 1, Hybrid with 8 960 Inputs
- MT Code
- SKL_SER-7E0820TEF
- Manufacturer Code
- SER-7E0820TEF
- Brand
- SKILLEYE
XVR TKH Skilleye Hybrid 5 in 1, Hybrid with 8 960H/HD-TVI/AHD/HD-CVI Inputs + 8 IP Inputs (up to 16 by replacing the analogue inputs), H.265 High Profile Compression, Embedded Linux Operating System, Pentaplex , 8 RCA Audio Inputs, 1 RCA Audio Output. 1 HDMI (4K) and VGA (FullHD) main video output, 1 CVBS spot output on BNC. Recording rate (for each analog input): 25fps4MPlite/1080p/720p/960H (HD-TVI/AHD/HD-CVI) or 20fps5MPlite (HD-TVI/AHD) or 12fps4KLite/5MP/4MP (HD-TVI/AHD) or 6fps4K (HD-TVI/AHD) + 8 IP cameras max 4K/20fps/6Mbps each. Dual-Stream for each video signal; Live Real Time Viewing 200fps; Recording on Time Schedule, Motion, Alarm or Manual; Backup to USB or network in DAT or AVI format; Playback 8 simultaneous channels; 2 USB 2.0 ports; Web viewer (IE7+, Safari, Chrome, Firefox), CMS for Microsoft Windows & Apple iOS, Smartphone viewer (iPhone/iPad, Androïd). Up to 10 simultaneous users on the Ethernet network. 8 Alarm Inputs, 2 Alarm Outputs. Max 2 HDD 3.5 inch SATA (not included) max 10TB each; RS-485 port for keyboard control and telemetry, Pelco D/P protocols; 1 Ethernet network card 10/100/1000Mbps RJ45, max input/output bandwidth 32Mbps/96Mbps; network protocols DHCP, TCP/IP, HTTP, SMTP, NTP, DNS, PPPoE, free DDNS, ONVIF, AutoNAT, AutoDDNS, QRCode. 12VDC/15W power supply (without HDD), power supply included. USB mouse included. Operating temperature from -10 degrees C to 50 degrees C; Relative humidity from 10 percent to 90 percent. Dimensions (LxHxD): 380 x 45 x 268 mm. 1U rack installation.
Codice Produttore | SER-7E0820TEF |
---|---|
Brand | SKILLEYE |
Alimentazione | 12V DC |
