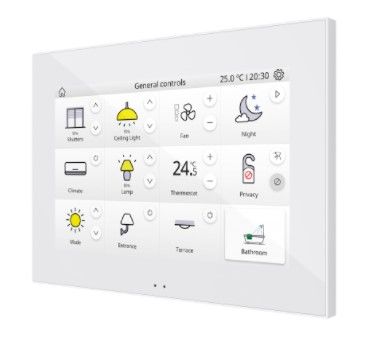

ZENNIO ZVIZ70V2W Z70 v2 Color Capacitive Touch Panel with 7" Display, White

Key Features

• 7″ color display (1280×800 px) with 16 million colors
• Proximity and brightness sensors for energy optimization and user experience
• Internal probe, 2 independent thermostats and 4 analog‑digital inputs
• USB (firmware) and Ethernet ports for updates and remote access
• Integrated KNX BCU, data persistence upon bus crash, automatic recovery
• Integrated speakers for acoustic signals
• KNX power supply (21‑31 VDC) or external 24‑29 VDC, consumption 145 mW at 29 VDC
• Compact dimensions: 189 × 137 × 37 mm (11.8 mm projection)

Advanced functionality (optional licenses)

• Remote Control: management from smartphone/tablet via app or browser
• Video intercom: integration with GetFace IP system
• ZenVoice voice control: can be activated with a dedicated license

Applications

• Lighting, climate and multimedia control in residential, hotel and commercial environments
• Integrated installation in KNX systems with firmware update and configurations via USB/Ethernet
• Suitable for those who require an elegant, functional and scalable interface

Compatibility and support

It supports ETS5 and ETS6. Data sheets, user manual, KNX ETS files and license management tools are available.
