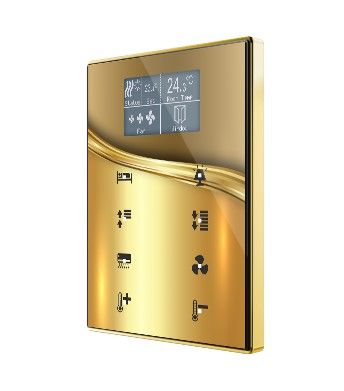

ZENNIO ZVI-TMDD-G Room controller + temperature, gold frame

The TMD-Display One, code ZVI-TMDD, is a fully customizable environment controller, designed to leave a desired aesthetic impression in any environment. Customization includes the possibility of creating unique compositions with images, icons, texts or logos, printed on high-strength tempered glass and framed in an anodized aluminum frame.

Key Features

• Manage climate, audio, curtains and lights through an intuitive and modern touch panel with 8 buttons.
• Integrated thermostatic function and internal temperature probe.
• 2 analog/digital inputs.
• 1.8” backlit display with 128 x 64 pixel resolution.
• 8 main touch areas and a central touch control.
• LED status indicator with customizable brightness.
• KNX BCU bus integration.
• Magnetic mounting with safety mechanism to prevent accidental extractions. Including metal support.
• Full data saving in the event of a power failure.
• Compliance with CE directives.

Personalization and Design

The customization of the TMD-Display One is possible through a dedicated web application, Touch-MyDesign, which allows you to create the touch glass design based on the user's specific needs.

Operational Functionality

The controller does not require a power supply other than that of the bus, simplifying installation and use. The functionalities are accessible through an intuitive user interface, making it easy to manage various home automation systems.
