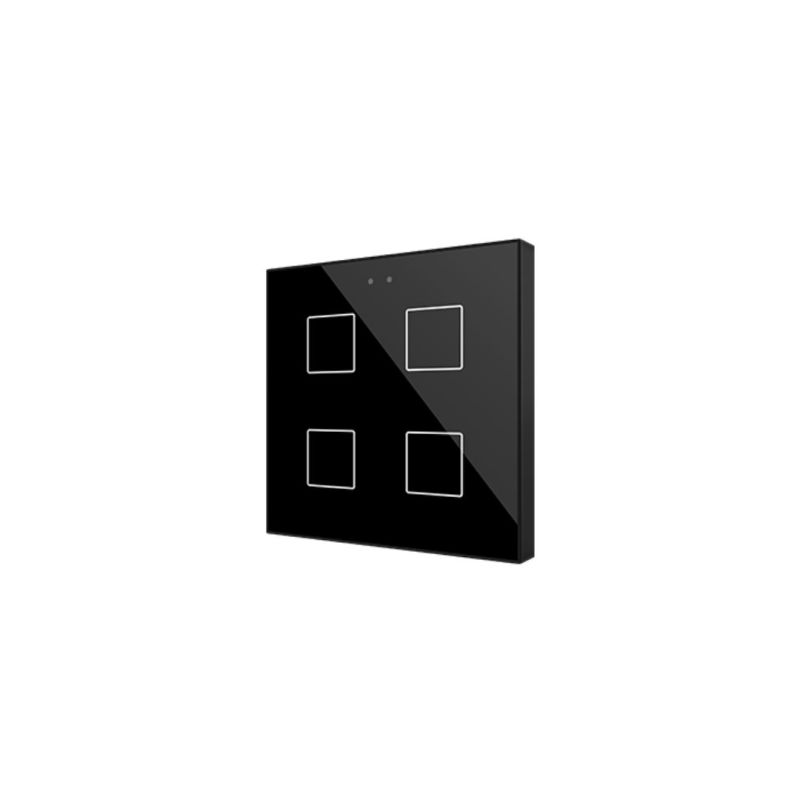

ZENNIO ZVIF4V2A ZVIF4V2A Flat 4 v2 Backlit Capacitive Touch Keyboard, 4 Keys, Black

<p/the ZENNIO ZVIF4V2A product is an electrical control device for the operation of domestic and industrial automation systems, integrated into the KNX protocol.

Key Features

This device has a glass panel with a capacitive touch, customizable through a web application. It is available with 1, 2, 4 or 6 touch areas, offering flexibility in configurations.

Tactile panel

• Glass panel with capacitive touch
• Customizable image through a web application
• 4 touch areas (in the ZVIF4V2 version)
• Illumination of touch areas to indicate status

Sensors and Inputs

• Integrated temperature sensor with a measurement range from -30°C to +90°C and a resolution of 0.1°C
• Brightness and proximity sensor
• 2 analog/digital inputs
• Support for temperature probes and motion sensors

Control Functionality

• Integrated thermostat
• Saving data in the event of a KNX bus failure according to the parameterization
• Data recovery when restarting the KNX bus according to the parameterization

Technical Specifications

• Power supply: 29 VDC SELV (operating range 21-31 VDC)
• Maximum consumption: 469.8 mW @ 29 VDC (for the ZVIF4V2 version)
• Operation temperature: 0°C to +55°C
• Storage temperature: -20°C to +55°C
• Operation and storage humidity: 5% to 95%
• Protection class: IP20, clean environment
• Case material: PC+ABS FR V0, halogen-free

Installation

• Recessed mounting on back box
• Dimensions: 81 x 81 x 31 mm (protrudes 9 mm from the wall)
• Fastening clip for guaranteed stability

Compliance and Security

• Compliance with CE, UKCA, RCM directives
• Device type: type 1 electrical control device
• Period of electrical stress: long
