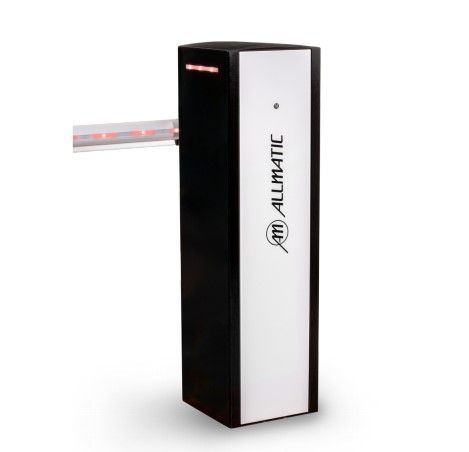

ALLMATIC 12007337 BOOMY LED BARRIER
- MT Code
- ALL_12007337
- Manufacturer Code
- 12007337
- Brand
- ALLMATIC
BOOMY LED BARRIER
Excellent relationship between performance and reliability. 24Vdc electromechanical barrier system for the control of road accesses and driveways. Robust steel structure, combined with the use of highly resistant mechanical components, guarantee maximum reliability over time. Optional green/red traffic light LED strips that can be integrated both in the case and in the rod (for the 6 m LED version that can be integrated only in
the case).Anthracite gray color (RAL 7016)
BIOS1 24 BOOMY
New dedicated electronics, housed on a sturdy removable trolley for quick and comfortable access. Obstacle detection and motor absorption monitoring during programming, to allow a total adaptation of the motion. The new BIOS1 24 BOOMY has been designed to ensure maximum ease of use
Other features
- Side locking with key
- Possibility to operate without power with a dedicated battery kit (optional)
- Availability of adjustable rod holder (optional)
Fixing plate, rod and rubber supplied separately.
TECHNICAL CHARACTERISTICS:
- Power supply (V): 230 Vac - 50Hz
- Motor power supply (V): 24Vdc
- Motor consumption (A): 6
- Motor power (W): 140
- Weight (total without accessories) (Kg): 54
- Recommended daily cycles (number): 1500 Maximum bar length (m):
- 4 Service (%):
- 100 Opening time at 90° sec.: 3 Operating temperature (°C):
- -10°
- ... 55° degree of protection (IP): 44 Control unit:
- BIOS1 24 BOOMY
| Codice Produttore | 12007337 |
|---|---|
| Brand | ALLMATIC |
|
