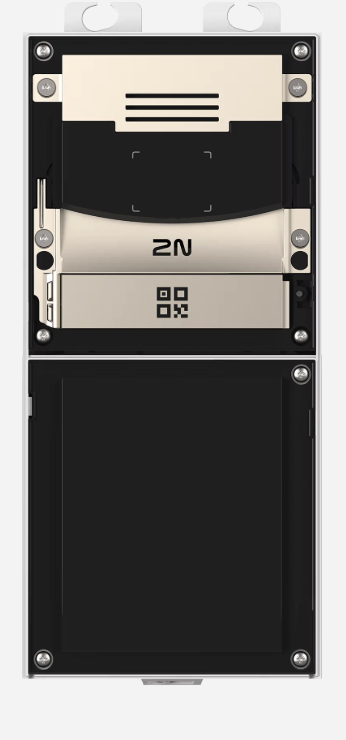

916201 2N ACCESS UNIT QR

The 2N Access Unit QR, identified with order number 916201, is an innovative and secure access control system, designed to provide a frictionless access experience.

Key Features

This device uses static QR codes containing 4-15 characters (decimal or hexadecimal) to ensure fast and secure access using mobile phones. It is more secure than PIN codes and cheaper and more sustainable than RFID cards.

Power and Connectivity

The unit can be powered via PoE (802.3af, class 0-12.95W) or via DC 12V ± 15% /2A power supply. The network connection is via an RJ-45 jack with 10/100BASE-TX support and Auto-MDIX.

Technical Specifications

• Inputs: 1 input in passive/active mode (-30 V to +30 V DC)
• Active switch output: 8-12 V DC/max 400 mA
• Passive switch contacts: NO/NC, up to 30 V/1 A AC/DC
• Operating temperature: -40°C to +60°C
• Protection rating: IP54 and IK08

Assembly and Dimensions

The unit is available for surface or flush mounting. The dimensions vary depending on the type of mounting:

• Surface mount: 107 (W) x 234 (H) x 28 (D) mm
• Flush mount (frame): 130 (W) x 257 (H) x 5 (D) mm
• Flush mount (box): 108 (W) x 238 (H) x 4 (D) mm

Peso

The net weight of the unit is 1.60 kg, while the gross weight is 2.20 kg.
