Zennio Soft ZS70 Range: Advanced Control, Consistent Design

The Soft ZS70 range from Zennio represents a significant step forward in KNX push-button design and traditional system controls. With its minimal design and smooth, precise touch, the ZS70 line combines ergonomics, customization, and project flexibility – making it the ideal solution for both residential and commercial applications.

Discover Soft ZS70 of Zennio!

Two Versions to Cover Every Requirement

With the latest expansion of the range, Zennio introduces two new variants designed to provide the same user experience across different technological scenarios:

🔘 Soft KNX ZS70
The fully integrated KNX version.

• Direct connection to the KNX bus → no external interface module required.

• Smart modularity → electronics and cover are sold separately, simplifying installation, replacement, and customization.

• Advanced integrated functions:

  • Built-in temperature sensor with the option for periodic value transmission to the bus.

  • Configurable analog/digital input for external temperature probe connection.

  • Independent, fully configurable thermostat via ETS.

  • KNX Secure compatibility for maximum communication protection.

🔘 Soft ZS70 with Binary Inputs
Perfect for those who want to maintain a coordinated look even on traditional systems.

• Functions as a “classic” push button but with the same finish and frame as the KNX version.

• Ensures visual consistency in hybrid projects (for example, KNX in living areas and a traditional system in bedrooms).

ETS Configuration: Maximum Flexibility

Once the device database has been imported into ETS, the integrator can configure the device through the main parameters:

• Device Type: choose between 1, 2, or 4 activation zones, with single press (bottom only) or dual press (top + bottom). ETS displays a graphical preview of the selected distribution.

• Thermostat: enable and configure the internal thermostat.

• Internal / External Temperature Probe: enable the built-in probe and configure an optional external probe.

• Heartbeat: activate periodic “alive” notifications on the bus.

• Advanced Configuration: enable features such as button locking, Welcome Back Object, and Cleaning Function.

Assignable Functions for Each Button

Each activation zone can be configured as:

• Individual Control: On/Off, Dimmer, Scene, Constant Value, Shutter, Room State, etc.

• Pair Control: to manage balanced functions (up/down, on/off, increase/decrease).

Configuration options include:

• Programmable double press: send binary values, scenes, or numerical values on the second press.

• Timed button locking: useful for avoiding unwanted repeated actions.

• Status feedback: dedicated KNX objects to maintain synchronization with actuators and central logic.

Use Case: Light and Shutter Control on a Single Plate

A practical example:

• Left button: configured as a dimmer.

  • Short press → toggles ON/OFF.

  • Long press → continuous dimming (100% step).

• Right button: configured as a shutter control (Standard).

  • Long press on bottom → lowers shutter.

  • Long press on top → raises shutter.

  • Short press → lamella adjustment step or stop during movement.

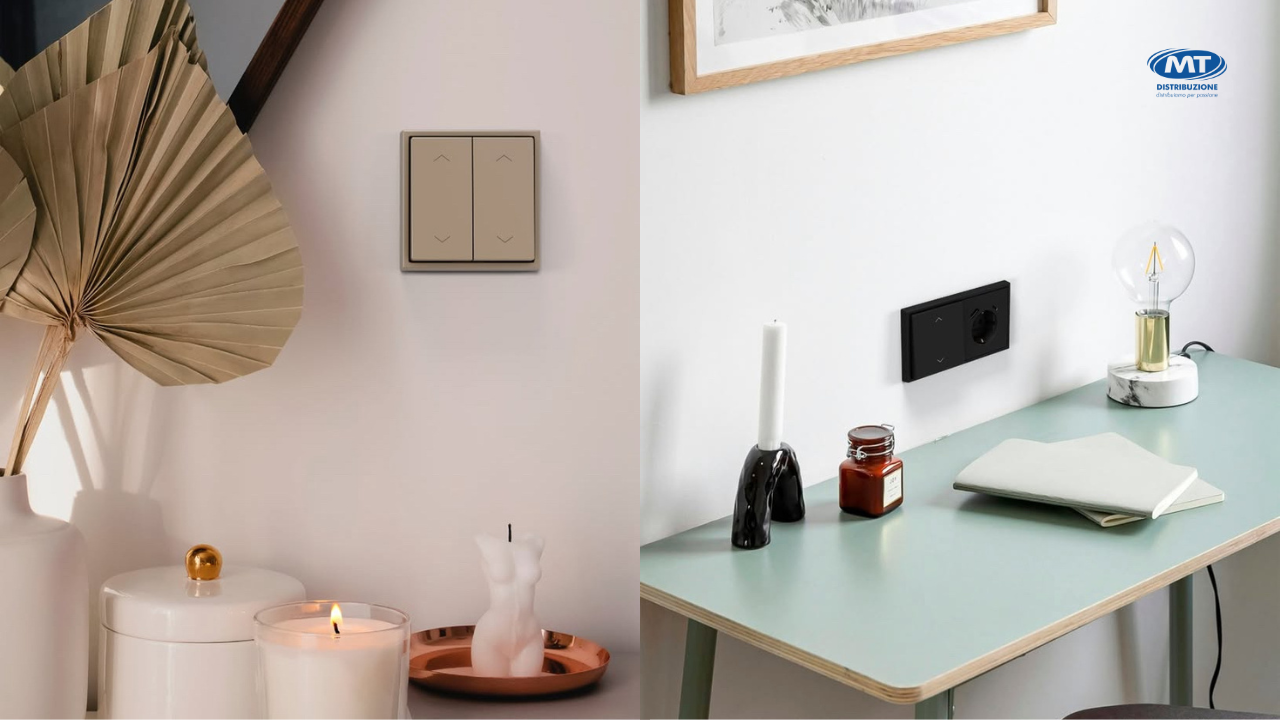

With a single 70×70 plate, the user has full control over lighting and shading in a room, through an elegant and intuitive interface.

Aesthetic Customization: Touch My Design

ZS70 Soft covers are available as:

• Plain (without icons).

• With standard icons (light, key, doorbell, shutters).

• Fully customized, thanks to the online Touch My Design tool, which allows adding logos, texts, or custom symbols – perfect for hotels, offices, or branded projects.

Benefits for Designers and Integrators

• Consistent look: uniform aesthetics across the entire installation.

• Faster installation: modular design and intuitive ETS configuration.

• Project versatility: one single product line for both KNX and conventional needs.

• Superior user experience: soft-touch feeling and immediate feedback for natural interaction.

Conclusion

The Soft ZS70 range is an elegant and complete solution for any project, combining aesthetics, functionality, and customization options.

You can find it at MT Distribuzione.
📞 Contact us for more information, talk with our technical expert, and receive tailored advice based on your specific needs.

MT Distribuzione Team
