With HVAC systems evolving toward increasingly connected and automated solutions, the IN770 Air Gateway Series by Intesis – HMS Networks emerges as a strategic component for the efficient integration of Mitsubishi Electric City Multi systems with leading Building Management System (BMS) platforms.
These multi-protocol gateways offer a reliable and scalable solution to ensure interoperability between HVAC systems and control networks based on Modbus TCP/RTU, KNX TP, BACnet/IP, BACnet MS/TP, and Home Automationprotocols.
Architecture and Available Licenses
The IN770 series is available in three models, differentiated by capacity and the number of supported units, making it adaptable to residential, commercial, and industrial contexts:

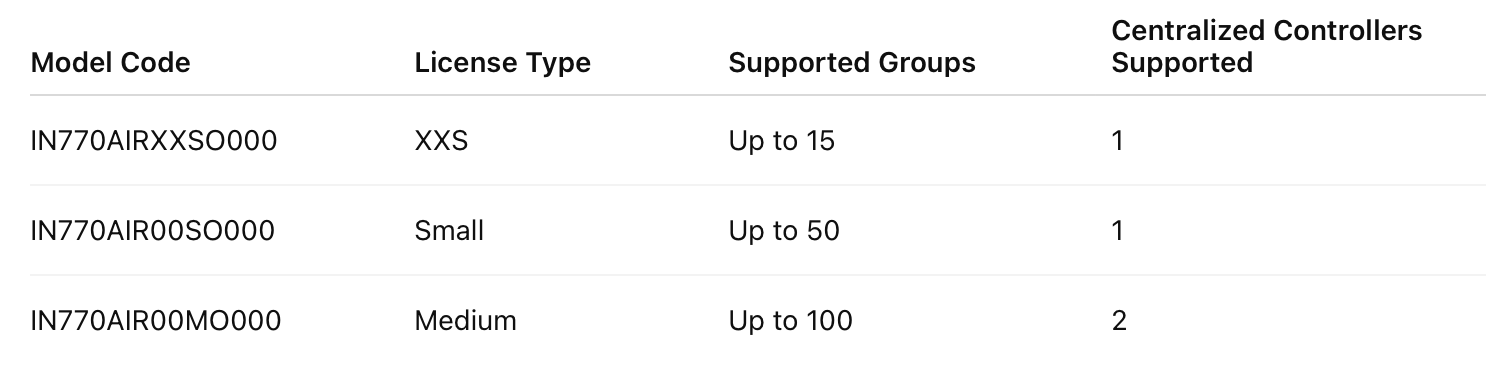

Model Code | License Type | Supported Groups | Centralized Controllers Supported |
XXS | Up to 15 | 1 | |
Small | Up to 50 | 1 | |
Medium | Up to 100 | 2 |
License activation allows the gateway's functionalities to be scaled according to project needs, while maintaining the same hardware base.
Native Multi-Protocol Integration
A key strength of the IN770 series is its simultaneous compatibility with multiple communication protocols, configurable via Intesis MAPS software:
Modbus RTU / TCP
KNX TP
BACnet/IP and BACnet MS/TP
Home Automation over Ethernet
Each device can be flexibly configured to support the required communication protocol, ensuring full interoperability with existing supervisory systems.
Compatibility with Mitsubishi Electric Systems
IN770 gateways are designed to integrate with Mitsubishi Electric City Multi units via connection to centralized controllers equipped with M-Net XML over Ethernet interfaces. Compatible controllers include:
G-50, G-50A
GB-50A, GB-50ADA
AG-150A, AB-150, AE-200, AE-50
EW-50, EB-50GU
Devices without Ethernet ports and controllers such as the AE-400 are not supported.
Gateway Operational Features
The IN770 gateway operates as a passive server on the BMS side and as an active client on the HVAC side, continuously monitoring the status of connected units. Key features include:
Centralized control of HVAC groups (on/off, operating modes, fan speeds, vane positions, temperature)
Access to specific signals from outdoor units
Automatic detection and management of communication errors
Energy consumption data acquisition per group or total
Auto-discovery of units connected to the M-Net network

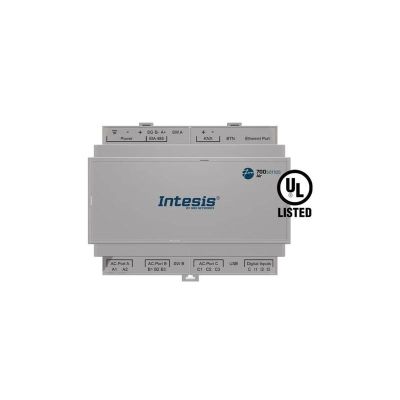

Hardware Characteristics

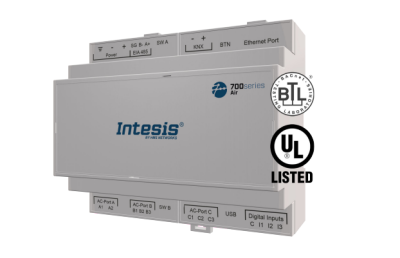

Each device in the IN770 series is designed for professional installation in control cabinets or electrical panels and includes a comprehensive set of ports and hardware features:
EIA-485 connectors for Modbus RTU and BACnet MS/TP
Ethernet port for Modbus TCP, BACnet/IP, Home Automation, and Mitsubishi controller connection
KNX TP port with orange terminal
USB Mini-B port for local configuration
Three digital inputs for energy meter integration
14 diagnostic LEDs, DIP switches for RS-485 termination and polarization
Power supply: 12–36 VDC or 24 VAC (SELV / LPS)
DIN rail or wall mounting options
Configuration via Intesis MAPS
Configuration is handled through Intesis MAPS software, which enables:
Import of preconfigured templates based on project type
Full customization of gateway signals and parameters
License and firmware management
Real-time diagnostics of communication between the gateway, BMS, and HVAC system
Configuration can be performed via USB or Ethernet.
Benefits for System Integrators
For designers and system integrators, the use of the IN770 series enables:
Centralized HVAC control within existing BMS infrastructure
Elimination of multiple gateways or proprietary interfaces
Reduced setup and commissioning time
Full support for a wide range of protocols from a single device
The modular design and certified compatibility with major automation systems make it a reliable tool for projects where flexibility, interoperability, and reliability are essential.
Conclusion
The IN770 Air Gateway Series by Intesis – HMS Networks represents a state-of-the-art solution for integrating Mitsubishi Electric HVAC systems within professional BMS environments. With a full set of interfaces, scalable licensing, protocol flexibility, and simplified installation, it sets a new benchmark for HVAC automation in commercial, residential, and industrial applications.
The IN770 Series is available at MT Distribuzione. For technical information or support in designing your system, our technical team is available for dedicated consultations. Contact us for a tailored assessment.
